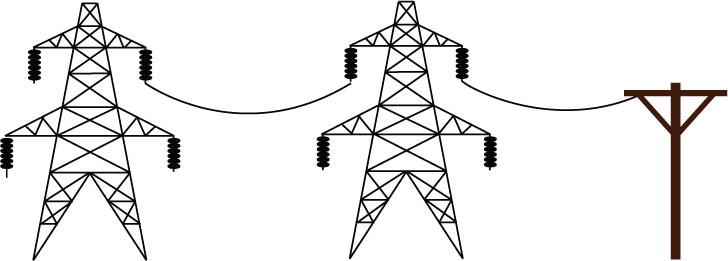

OVERHEAD LINE CONDUCTORS

-

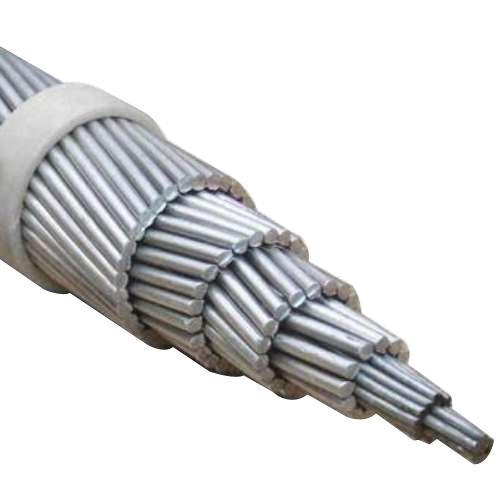

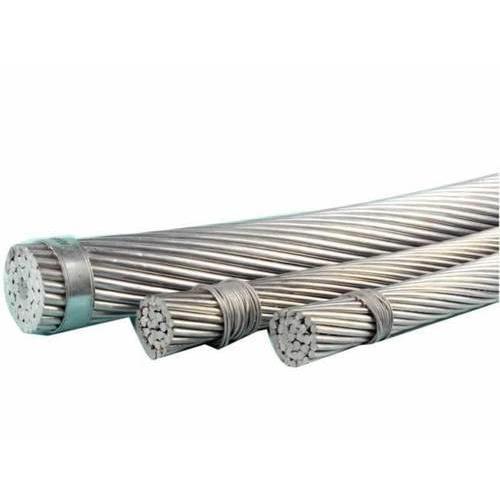

" DIFFERENT TYPES OF ACSR CONDUCTORS "

  1. SQUIRREL CONDUCTOR :
  • CONDUCTOR SIZE = 20 SQ MM
  • CONDUCTOR AMPACITY = 107 AMPS
  • APPLICATION = USED IN 440V DISTRIBUTION  LINES.



     C:\Users\HP\AppData\Local\Microsoft\Windows\Temporary Internet Files\Content.IE5\HN9MDAGN\powerlines[1].jpg





2. WEASEL CONDUCTOR :

  • CONDUCTOR SIZE = 30 SQ MM
  • CONDUCTOR AMPACITY = 138 AMPS
  • APPLICATION = USED IN 11 KV TRANSMISSION LINES.

 C:\Users\HP\AppData\Local\Microsoft\Windows\Temporary Internet Files\Content.IE5\HN9MDAGN\powerlines[1].jpg




3. RABBIT CONDUCTOR :

  • CONDUCTOR SIZE = 50 SQ MM
  • CONDUCTOR AMPACITY = 190 AMPS
  • APPLICATION = USED IN 11 KV TRANSMISSION LINES.

 C:\Users\HP\AppData\Local\Microsoft\Windows\Temporary Internet Files\Content.IE5\HN9MDAGN\powerlines[1].jpg



4.DOG CONDUCTOR :

  • CONDUCTOR SIZE = 100 SQ MM
  • CONDUCTOR AMPACITY = 290 AMPS
  • APPLICATION = USED IN 33 KV TRANSMISSION LINES.


       C:\Users\HP\AppData\Local\Microsoft\Windows\Temporary Internet Files\Content.IE5\HN9MDAGN\powerlines[1].jpg



5. WOLF CONDUCTOR

  • CONDUCTOR SIZE = 150 SQ MM
  • CONDUCTOR AMPACITY = 400 AMPS
  • APPLICATION = USED IN 33 KV TRANSMISSION LINES.



      C:\Users\HP\AppData\Local\Microsoft\Windows\Temporary Internet Files\Content.IE5\HN9MDAGN\powerlines[1].jpg



6. PANTHER CONDUCTOR :

  • CONDUCTOR SIZE = 200 SQ MM
  • CONDUCTOR AMPACITY = 467 AMPS
  • APPLICATION = USED IN 132 KV TRANSMISSION LINES.

  C:\Users\HP\AppData\Local\Microsoft\Windows\Temporary Internet Files\Content.IE5\HN9MDAGN\powerlines[1].jpg









7. ZEBRA CONDUCTOR :


  • CONDUCTOR SIZE = 430 SQ MM
  • CONDUCTOR AMPACITY = 738 AMPS
  • APPLICATION = USED IN 220KV TRANSMISSION LINES.

















C:\Users\HP\AppData\Local\Microsoft\Windows\Temporary Internet Files\Content.IE5\HN9MDAGN\powerlines[1].jpg


8. MOOSE CONDUCTOR :

  • CONDUCTOR SIZE = 520 SQ MM
  • CONDUCTOR AMPACITY = 836 AMPS
  • APPLICATION = USED IN 400 KV TRANSMISSION LINES.

 C:\Users\HP\AppData\Local\Microsoft\Windows\Temporary Internet Files\Content.IE5\HN9MDAGN\powerlines[1].jpg





  • NOTE : The Names of ACSR Conductors are named from animals so as to remember  easily the size of conductor , Ampacity of conductor based on animal sizes and its Endurance .
